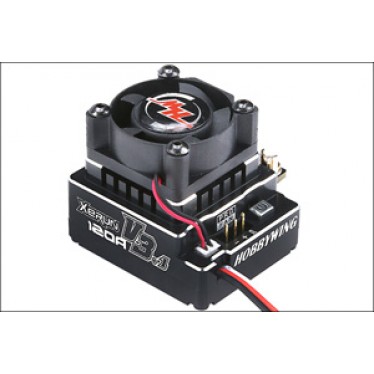

Schumacher Hobbywing XERUN - V3.1 BL-ESC - Black 120A

Features

2.1 All in One. Up to ten profiles can be stored in the memory and imported or exported easily. Factory pre-set profiles include:

Blinky mode, Modify Mode, Stock mode, Practice mode, Offroad mode, Drift mode, Crawler mode.

2.2 Built-in Electronic Switch, long life and high reliability, also saves space on the chassis.

2.3 Aluminium Upper and Bottom Cases with optional colours, giving better heat dissipation, and allowing higher current.

2.4 External Programming Port (EPP), easy to connect and also a power port for additional fan.

2.5 Advanced Dynamic Timing technology, providing more customization possibilities for highest level competitions.

2.6 Precise throttle and brake control, setting of drag brake and brake strength with more options, new punch and brake rate control functions, and throttle and brake curves through the PC client.

2.7 Integrated Data logger, recording the maximum temperature of ESC and motor as well as the maximum RPM, using LCD Programming box to check easily in the pits.

2.8 Multi Protection Functions, making your running safe with ESC and Motor overheat protection, low voltage cutoff and throttle signal loss protection.

2.9 Easily programmed with the Multifunction LCD Program Box and USB Link Software

2.10 New USB LINK Software graphic interface, providing extra parameters for advanced settings.

(Note: The V3.2_121204 or later version USB Link Software is strongly recommended for XERUN V3.1 ESC)

2.11 ESC firmware can be updated through the USB adapter in the LCD Program Box.

Suitable Car

1/10,1/12 all competitions

1/10,1/8 rock crawler

Cooling Fan: 5V

Size

-37.5mm(L) 31mm(W) 29.5mm(H), excludes wire connectors

-37.5mm(L) 37mm(W) 29.5mm(H), includes wire connectors

Weight: 93g

Note #1

For 4-6 cells NiMH/NiCd or 2S LiPo, the standard cooling fan needn't be changed.

For 7-9 cells NiMH/NiCd or 3S LiPo, the standard cooling fan needs to be changed to 12V high voltage fan.
