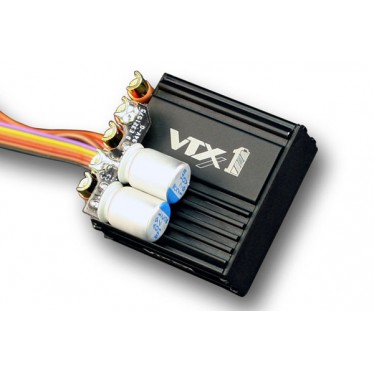

Viper VTX1 Sensored Brushless ESC

Viper VTX1 Sensored Speed Control is the most advanced speed control system available. Fully adjustable, ROAR approved, ultra small footprint makes the VTX1 the clear choice in your hunt for podium finishes. The VTX1 is designed for 1/12th and 1/10th scale on road applications without a radio receiver pack. It is also a perfect option for competitive 1/10th off road racing.

The VTX1 all aluminum case disperses heat without the use of a fan. It comes preloaded with eight profiles which are all customizable for different applications. Or add your own profile for a track or track condition. The top of the line power FETs in the VTX1 will provide ultra-low resistance for blinking mode races. Its sophisticated boost timing firmware will be your best choice for your hunt for podium finishes.

VTX1 Features:

• True sensored system
• 1"2S LiPo Support without radio receiver pack
• Smart Brake System setting by motor RPM and curve profiles
• Dynamic timing boost for competitive track conditions
• High resolution setting (100 steps in most key parameters)
• Battery cut off, ESC temperature, and motor temperature protection
• LED indicator for STOCK/MODIFIED class race
• Auto time-out power off
• V-LINK Software for firmware upgrade and PC interface set up (link device sold separately)
• 8 Default standard set up profiles that allow quick set up without ProGauge

Specification:

• Motor Type: Sensored Only
• Model: VTX1
• ON Resistance: 0.00045O * 2
• Battery Support: 1"2S Li-Po
• Motor limit: 540/3.5T@1S
540/6.5T@2S

• BEC voltage: 4.5"5.5V
• Dimensions (WxLxH): 30x32.5x14.5mm

Please note EZ Link sold separately.
