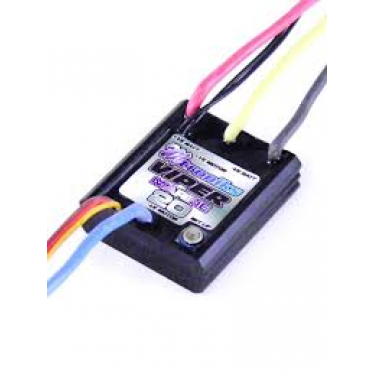

Mtroniks Viper Marine 20A Brushed Speed Control

The Viper Marine20 is a brushed speed control designed specifically for use in RC models boats.

It has a 20Amp motor limit, what this means is that you can use any, DC brushed motor, as long as the current drawn by that motor does not exceed 20Amps under load (with the prop connected, under water).

The Marine20 is the perfect speed controller for anybody wanting to either upgrade their old speed controller for a no nonsense 20Amp limit reversible electronic speed control or for anybody who uses scale model RC boats at scale speeds.

The Marine20 is a popular choice from the ever popular line of Viper Marine speed controls, this is due mainly to all the features that are included; a built in failsafe, 100% proportional, fine throttle control in both directions, and motor stall protection (this is a feature that cannot be overlooked when a possible encounter with weed is always possible).  Not to forget that the Viper Marine range of speed controllers are all completely 100% waterproof and designed to work on fully charged 12V Lead Acid batteries.

Easy one touch set up

Forwards and reverse

6 to 12V  Operation

20A Brushed motor limit

Product Type : Speed Controller Only

Motor Type : Brushed

Current Limit : 20 Amps

Direction : Forwards/Reverse

Battery Type : NiCAD/NiMH/Lead Acid

Lipo safe : No

Operating Voltage : Maximum 12.0 Volts

Set up : Digital 1-touch

BEC : 1.2A

Motor Short circuit protection : Yes

Thermal overload protection : Yes

Failsafe :Built in

Dimensions : L39.0mm x W34.0mm x H13.0mm

Weight : 55.0g
