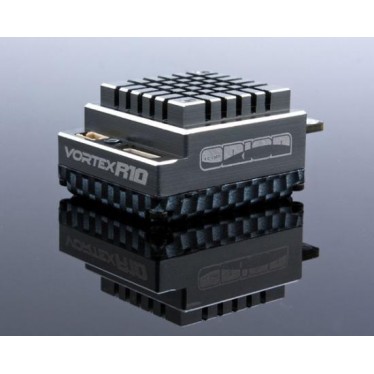

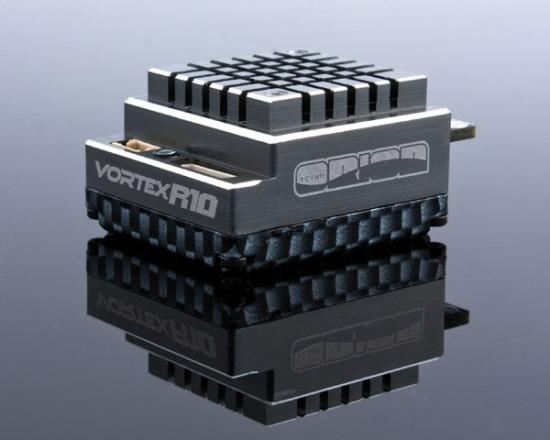

Team Orion Vortex R10 Pro 160A ESC ORI65102

This is the Team Orion Vortex R10 Pro 2-3S Brushless ESC. With the Vortex R-Series product family Team Orion presents brushless speed control technology at its best. Developed by World Champions the new ESCs are unifying unbeatable performance with outstanding drivability and robustness.

 Features:

Sensor and Sensorless Technology With Ultimate Throttle Control

Available For Sensor And Sensorless 2/4-Pole Motors

Super Push Brake Technology For Improved Braking Power And Feeling

Adjustable Forward/Reverse Or Forward/Brake Function

Many Adjustable Software Parameters

High Flow Cooling Fan And Large Size Heatsink For Improved Cooling

Large Size Integrated Capacitors

Compact And Robust Carbon Look ABS Case

Heavy Duty 10G Silicone Wire

High Power Connectors

Updgradeable Software

Latest Brushless Technology With Improved Function And Efficiency

Great Throttle/Brake Feeling And Control

Easy Setup Using The Switch Setup Button

Software With Many Adjustable Parameters For Fine Tuning

LED And Audio Tone For Status Control High Grade Components With Low Resistance Automatic Battery Cut-Off System

High Power Connectors

Highly Customizable Software

Easy To Use

Specifications:

Type: Sensor/Sensorless

Constant/Peak Amps: 160A/760A

Resistance: 0.0003 ohm

Function: Forward/Brake, Forward/Brake/Reverse, Forward/Reverse (for rock crawlers)

Car Type: 1/12 on road, 1/10 on road & off road, rock crawler

Motor Type: 2S up to 2.5T, 3S up to 5.5T up to 16,000kV

Battery Type: 5-9 Cells NiMH-NiCd, 2-3 Cells LiPo-LiFe

BEC: 5.75V/3A Linear Mode

Size: 41.5x30.5x20.2mm w/o fan

Weight: 44g
