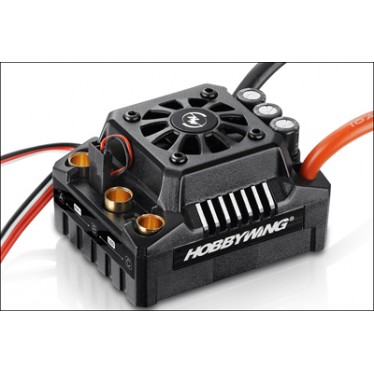

Schumacher Hobbywing HW30103200 Ezrun Max8-v3 T Plug 150A 1/8 ESC

From Hobbywing is the Ezrun Max8 brushless speed controller. The 6S LiPo-compatible and 150A rated ESC is usable with sensored and sensorless motors and it offers a selectable 6V or 7.2V high-output BEC system to feed the latest breed of high-voltage servos. Thanks to its dust and water protection the controller will withstand nearly every racing and bashing condition which is further helped by the standard electric switch that is much more reliable than standard mechanical switches. The controller comes pre-soldered with T-plug its case incorporates 6.5mm gold-plated bullet-type connector tubes while offering Traxxas-compatible mounting lugs for a secure fitment on many chassis.

- Cont./Peak Current: 150A/950A

 - Motor Type: Sensored/Sensorless brushless motor

 - Applications: 1/8th Touring Car, Buggy, Truggy and Monster Truck

 - LiPo/NiMH Cells: 3-6S LiPo/9-18S NiMH

 - Motor Limit 4S LiPo/12 cells: Kv=3000 (4274 size motor)

 - Motor Limit 6S LiPo/18 cells NiMH: Kv=2400 (4274 size motor)

 - BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)

 - Dimensions: 59.8x48x36.8

 - Weight: 173.5g

 - Programming Port: FAN/PRG Port
