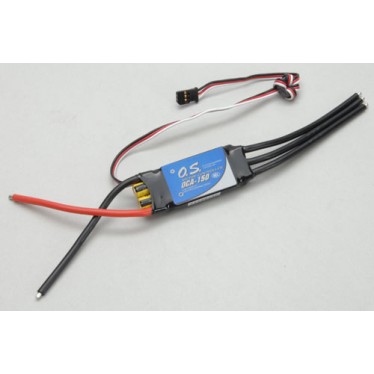

O.S. OCA-150 Brushless ESC 50A P-OS52010050

Brushless Motor ESC for Airplanes and Helicopters

Suitable O.S.Brushless motors:

OMA-3820-1200 / OMA-3825-750 / OMA-3815-1000 / OMA-3810-1050

Specification

Function: Forward-Stop-Brake-Reverse

Load Current: 50A (60A 5 seconds Peak)

Parameter Settings: ESC/ESC Programmer OCP-1 (Optional extra)

Protective Functions: Start protection/Low voltage cut-off/No signal cut

PWM Frequency: 32kHz

Cell Count: 6-18 NiCd/NiMH, 2-6 LiPo

Working Voltage Range: 6 - 25V

Weight: 52g

B.E.C. (Voltage/Amps): 5.5V, 3A (Peak 5A)

Dimensions: 50x25x10mm
