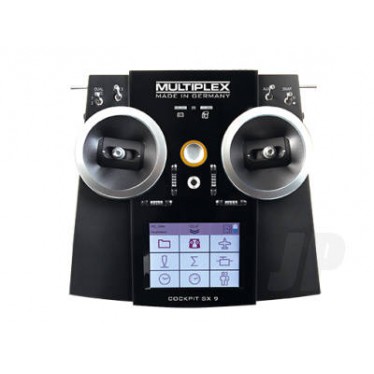

Multiplex Cockpit SX 9 Set inc. RX-9-DR M-LINK 2525161

Innovation and sophistication in a user-friendly package

A 9-channel, telemetry-capable, 200 model memory, touch screen computer radio with speech output

Developed and built in Germany, the Multiplex Cockpit SX 9 is perfectly suited to both the forward-looking beginner and the demanding leisure pilot. Offering a full-colour TFT touch-screen of 320 x 240 pixels, pilot information is offered via symbols and large, clearly legible letters and numerals. It's visible in sunlight, too, without backlighting, which makes it perfect for R/C flying. Boasting a highly intuitive programming logic that includes many self-explanatory graphics, plus super-convenient SD card management of the 200 internally stored model memories, you'll quickly grow to love it's user-friendly persona.

Since we're beginning to get used to our transmitters talking to us - who'd have thought it? - many R/C flyers are now looking for a radio with speech output, and in this respect the SX 9 leads the way with more than 450 words, numbers and phrases in its vocabulary. In fact, where speech is concerned it's one of the most advanced systems of its type ever to have been incorporated in a hand-held transmitter. This, of course, keeps you aware of critical telemetry data and transmitter functions without you having to take your eyes off the model. Also, when necessary, the Cockpit SX 9 speaks specific sensor values to you and, moreover, if an alarm should be triggered, you don't have to look at the screen to see what's happened, the SX 9 just tells you. Eight telemetry sensors can be connected that measure anything from current to temperature, whilst telemetry data can also be stored in the model using the optional Flight Recorder.

Featuring a wireless trainer system the SX 9 can (in tandem with the optional Co-Pilot module) operate both as an instructor or pupil transmitter, whilst the second transmitter can be any M-LINK set with a trainer facility. Meanwhile, Selective Trainer Mode allows full control transfer to the trainee or, depending on the trainee's skill level, the transfer of individual control functions. Better still, the teacher can resume control of the model simply by moving the sticks. All in all, it's a powerful system. Take a look at the features and functions, weigh them against the price, and decide for yourself.

Key Features

9 fully proportional channels.

M-LINK transmission for secure ultra-fast, digital signal transmission.

Real-time telemetry.

Analogue and digital servo mode.

Integral aerial technology with extremely high range.

3.5 TFT full colour touch screen with day / night switching.

Gimbal units with quadruple ball races.

Speech output via loudspeaker or earphone socket.

Multi use USB socket for PC interface and firmware updates etc.

Light weight.

Long operating time of up to 24 hours.

Model Assistant feature to guide you through the programming procedure.

Clear, efficiently organised smartphone-like menu structure.

Collective pitch curve adjustment using the touch and pull slide function.

Specification:

Length (mm): 190

Height (mm): 210

Width (mm): 60

Weight (g): 846

What's in the box

1 x 9-channel transmitter.

1 x Charge lead (USB A-plug to USB mini-B 5-pin).

1 x Comprehensive instruction manual.

1 x Neck strap eyelet.

1 x Decal sheet.

1 x RX 9-DR M-LINK receiver

Comprehensive feature list:

Model categories catered for Glider (two flap)

Glider (four flap plus airbrakes)

V-tail

Fixed-wing power

Fixed-wing aerobatic

Delta (jets)

Flying wing

Helicopter (120 degree CCPM)

Helicopter (90 degree flybarless

Multicopter

Special functions Throttle check

Transmitter battery monitor

Intelligent speech output

Spoken telemetry data via speaker or earphone

Real-time data transmission

Optional sensors (Vario, GPS, fuel, temperature, voltage, current, rpm etc.)

Vibration alarms

Flight phase specific digital trims

Timers (x3) with speech output

Variable stick modes

Comprehensive servo adjustment (travel, centre, limit, reverse)

Dual rate and Expo (variable for each flight phase)

3 flight phases (fixed wing)

4 flight phases (helicopter)

Heli throttle and pitch curves (9 point)

Aileron differential (variable for each flight phase)

Snap flap

Butterfly (Crow) mix

Unrestricted servo assignment

Wireless trainer mode

Multi-function USB socket

200 model memory storage via SD card

Model copy
