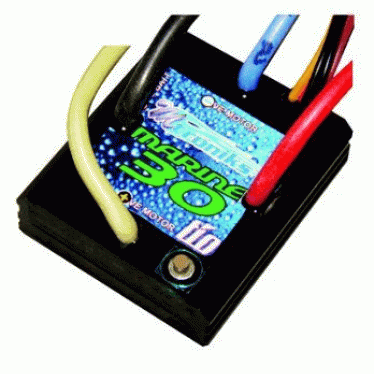

Mtroniks Tio Marine 30 Speed Controller

Mtroniks TIO Marine 30 Electronic Speed Controller

The tio Marine30 is a new Brushed Speed Control designed specifically for use in RC boats that allows for the use of Lipo battery packs as well as the usual NiCAD/NiMH/Lead Acid that are more commonly used.

The Marine30 has a 30Amp motor limit, what this means is that you can use any, DC Brushed motor, as long as the current drawn by that motor does not exceed 30Amps under load (with the prop connected, under water).

The tio Marine controllers also feature the new 4 quadrant control system that stops the motor completely before turning it in the opposite direction. This allows for perfectly symmetrical operation about the neutral position, allowing the modeller to achieve perfect slow control in all situations.

The Marine30 is the perfect speed controller for anybody wanting to either upgrade their old Speed Controller for a no nonsense 30Amp limit reversible electronic Speed Control or for anybody who uses scale model RC boats at scale speeds.

The Marine30 joins the tio Marine15 in the new line of tio Marine speed Controls suited to RC model boats, which means it has all the features that you would expect on a more expensive Speed Control! Features such as a built in failsafe are standard on this entry level Speed Control and the motor stall protection is a feature which cannot be overlooked when a possible encounter with weeds is always a possibility.

A breakdown of the tio Marine30 specification can be seen below

NEW built in failsafe to protect against complete loss of signal or when out of range (compatible with all manufacturers receivers)**INDUSTRY FIRST**

ABSOLUTE short circuit and motor overload protection

30Amp motor limit

1.2A BEC

Dual core microprocessor

4 quadrant control for perfect slow speed manoeuvres

Sealed lead acid battery (6 - 12V nominal) Fully charged 12V can be around 13.2Vwhich is ok.

5 -10 cells NiCad/NiMH input voltage (6.0-12.0V)

2 - 3 cells Lipo input voltage (7.4-11.1V)

4 Layer super power circuit board

Triple LED set up system

Thermal integrated protection system

Digital one touch set up

Reverse disable (on/off)

Legendary 100% waterproof design

Dimensions : L39.0mm x W34.0mm x H13.0mm

Weight : 55g
