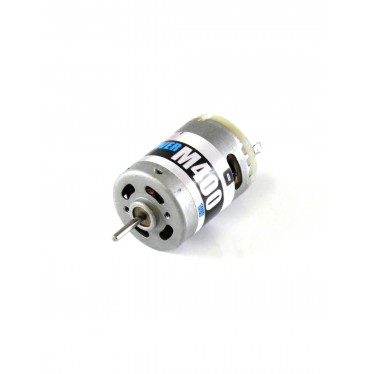

Mtroniks M400 Marine Motor

The Mtroniks 'Power M400' brushed motor is the smallest in the new line of brushed motors for model boats from Mtroniks.

The M400 is a 400 can sized motor, sometimes referred to as 370 or 380 size, it is ideal for use in small scale model boats running between 6 and 12V.

The M400 comes with suppression capacitor fitted to help reduce any nasty glitches or interference effects in your model and has standard pitch mounting holes of 16.0mm, M2.5.

Running at 12V, at maximum efficiency, the M400 will run at around 20000RPM and pull around 4Amps. Start up current, depending on prop size, would be around 10Amps.

Motor Type Brushed

Motor size 400

RPM@12.0V 20000

Power 20W

Stall current @12V 27.0A

Shaft diameter 2.25mm

Length 37.5mm

Diameter 27.5mm

Weight 65.0g
