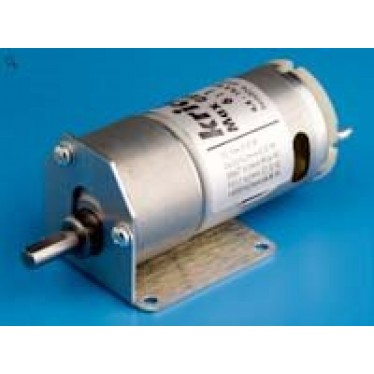

Krick Geared Motor 2.5:1 (4.8-14.4V) K42275

Krick Max Gear 540 type motor 2.5:1

MAX GEAR is a smooth running and low power consumption. Universal use for many applications. As marine propulsion or a slow-rotating motor for special functions - MAX GEAR motors are the solution. The gearbox is of metal construction with metal gears

Technical data

Gear 2.5: 1

Weight 270 g

Dimensions 87mm x 37mm dia excluding the mount

Output shaft 6mm plain

Voltage range 4.8-14.4 V

Current consumption at 12 V no load for approx. 0.5 A

Torque 30 N/CM at 12v

Output speed at 4.8v 2400 rpm

Output speed at 7.2v 3640 rpm

Output speed at 9.6v 4960 rpm

Output speed at 12.0v 6320 rpm
