Futaba 4Ch Combo 2.4GHz T-FHSS Dry R304SB P-CB4PV
Product Code: P-CB4PV
Futaba

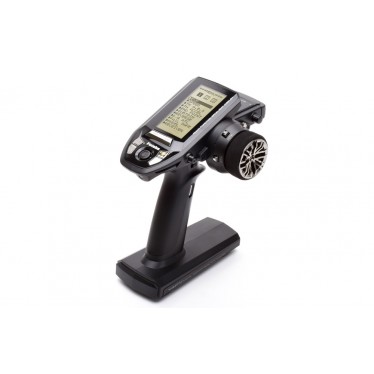

The Futaba T4PV is a high performance 4 channel transmitter packed with high-end features and styling. After the success of the T3PV the T4PV is a natural step forward. Whilst sitting below the T4PX in specifications the T4PV has many of the features most cars racers will ever need.
The bold screen is displayed prominently on the top of the case with lots of information available without having to access sub-menus. Navigation though the display menu is easy thanks to the jog-dial and large buttons and you can even setup a custom menu for your most used features.
As with all modern Futaba Radios the T4PV has telemetry built in as standard. You can check the voltage of the receiver battery, engine cylinder and motor case temperature, voltage of the rotational speed and the external power supply.
To further customise this radio you can optionally purchase a carbon handle, neck strap bracket or a steering lowering plate.
T-FHSS 2.4GHz Telemetry system
R304SB Telemetry receiver included (T-FHSS)
Telemetry read-aloud function (via earphone socket)
S.BUS2 technology
Receiver voltage display function (as standard)
External voltage display (optional sensor)
Temperature display (optional sensor)
Rotation speed display (optional sensor)
Gyro sensitivity adjustment function
Graphic LCD panel with backlighting
LED monitor
Ackerman adjustment with steering mixing
Front and rear wheel independent brake mixing (including delay with ABS function)
4WS Four wheel steering mixing
Dual ESC mixing
Neutral brake function
Variable trigger position mechanism (7mm)
40 Model memories
Up to 10 Character model names
MC link function (MC960CR / 940CR / MC950CR / MC851C / MC850C / MC602C / corresponding to the MC601C / MC402CR / MC401CR, can be recorded for each model memory)
ABS Anti-skid brake system
Idle-up
Throttle speed adjustment
Throttle cut adjustment
Throttle Acceleration
Throttle EXP
Throttle ATL
Mechanical ATL
Servo neutral select function (5: 5/7: 3)
Steering EXP
Steering speed
D/R Dual rates
EPA function (All channels)
Sub trim (All channels)
Program MIX
Function select dial/switch
Digital trims
F/S Failsafe (All channels)
Battery F/S (2 Channels)
Timer (up/down/lap: record up to a maximum of 100 laps)
Adjustable angle antenna (90°)
Included in the Box
T4PX Transmitter
R304SB T-FHSS Receiver
Tx battery cradle for 4 x 'AA' batteries
Instruction manual
Specification
Dials: 1 x Digital Dial
Model Memory: 40
Model Name: 10 Characters
Modulation: T-FHSS & S-FHSS
Receiver: R304SB T-FHSS (Inc.)
S.BUS: S.BUS2
Screen: LCD with Backlight
Servo Frame Rate: 3.3/15ms (T-FHSS)
Servo Frame Rate: 6.8/13.6ms (T-FHSS)
Switches: 1x Push Switch, 1x Push Lock Switch
Telemetry: Yes
Trims: 6 x Digital Trim
LiFe: 2S 6.6V LiFe (Not included)
Battery: 4x 'AA' Alkaline (Not included)
Channels: 4
NiCad/Ni-MH: 5 Cell NiMH (Not included)
