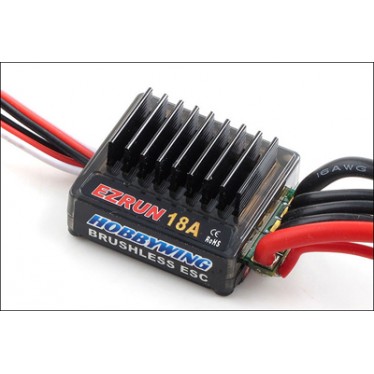

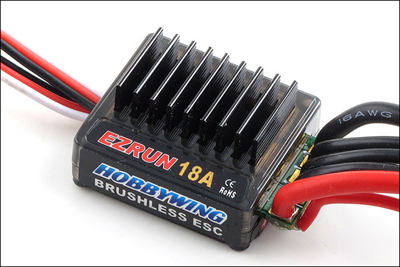

Ezrun-18A-SL BL ESC 1/16th

 2 Features

 2.1 Compatible with sensorless brushless motors.

 2.2 High quality components, big current endurance.

 2.3 Excellent start-up, acceleration and linearity features.

 2.4 Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.

 2.5 Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.

 2.6 Internal timing can be changed easily to make the ESC suitable for various of motors.

 2.7 Easily programmed with the SET button, LED Program Box, Multifunction LCD Program Box and USB Link Software.

 2.8 ESC firmware can be updated through the USB adapter in the LCD Program Box.

1 Specification

1.1 Output: Continuous 18A, burst 50A.

 1.2 Input: 4-9 cells NiMH/NiCd or 2-3S LiPo.

 1.3 BEC: 6V/1A (Linear mode built-in BEC).

 1.4 Resistance: 0.01 Ohm.

 1.5 Motor Supported: Sensorless Brushless Motor.

 1.6 Suitable Motor: * Note #1

 With 4-6 cells NiMH/NiCd or 2S Lipo: On-Road=12T, Off-Road=8T;

 With 6-9 cells NiMH/NiCd or 3S Lipo: On-Road=18T, Off-Road=24T;

 1.7 Suitable Car: 1/18 on-road sport.

 1.8 Cooling Fan: Not included.

 1.9 Size: 31.5mm(L) * 27.5mm(W) * 15mm(H).

 1.10 Weight: 19g (Without wires)

 * Note #1: These listed T numbers are available for 2040 sized brushless motor (=24, L=40)
