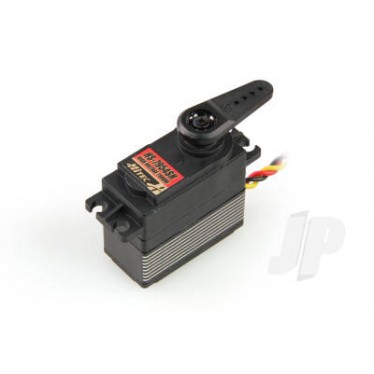

Servo HS7954SH G2 Premium High Voltage (HV) Super Torque 7.4V

Product Code: 2220540

Hitec

Out of Stock

Product Description

The HS-7954SH could be considered the most economical high voltage, high torque, coreless servo on the market. Based on the ultra popular HS-7955TG, the HS-7954SH has the added benefit of our high voltage coreless motor. With 403 inch ounce of torque at 7.4 volts, the HS-7954SH is fast too with a 0.12 second transit time when operating on a 2 cell LiPo pack. The HS-7954SH harnesses all this power by utilizing a heavy duty case that incorporates an aluminium heat sink, hardened steel gears, and two strong steel gear pins nested in brass axial bushings. Put it all together and you get one tough high voltage servo at a price that can't be beat.



Key Features

6.0v to 7.4v

Bearing Type - Dual Ball Bearing

Gears - Hardened Steel

Motor Type - Coreless

Size in Millimetres - 39.88 x 20.07 x 38.10

Speed (6.0V/7.4V) - 0.15/ 0.12 sec @ 60 deg.

Torque kg./cm. (6.0V/7.4V) - 24.0 / 29.0

Weight grams - 65.2



Features

G2 Digital Circuit

HV Coreless Motor

Dual Ball Bearing Supported Output Shaft

Steel Gear Train (MK first gear)



Programmable Features Include:



- Dead Band Width

- Direction of Rotation

- Speed of Rotation (slower)

- End Points

- Neutral Points

- Fail Safe On/Off

- Fail Safe Point

- Resolution* (default is high resolution)

- Overload Protection* (default is off)



*These features are only programmable with the HFP-20 field programmer.



Specification

Motor Type: Coreless

Bearing Type : Dual Ball Bearing

Speed (6.0V/7.4V): 0.15 / 0.12

Torque oz./in. (6.0V/7.4V): 333 / 403

Torque kg./cm. (6.0V/7.4V): 24.0 / 29.0

Size in Inches: 1.57 x 0.78 x 1.45

Size in Millimetres: 39.88 x 19.81 x 36.83

Weight oz.: 2.30

Weight g.: 65.20
