This item has been upgraded by Futaba to an 8Ch Radio.

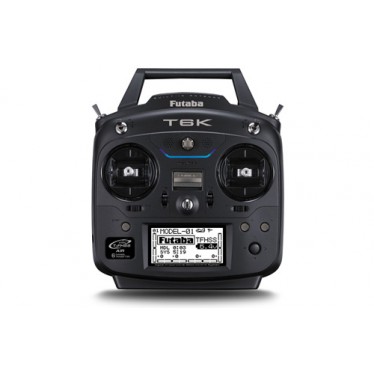

The new Futaba T6K is the perfect entry/sport level radio for aircraft and helicopter pilots. This stylish, stealth looking transmitter features a clean in-built aerial, easy jog dial programming and a backlit LCD screen for ease of use, however the T6K is not only about style, it also includes many features you would normally expect in high-end transmitters.
Designed to take full advantage of Futaba's popular T-FHSS telemetry system so a wide array of data can be monitored in flight (on screen or using the in-built speaker) including as standard receiver battery voltage and external battery voltage, whilst temperature, RPM, altitude and even a variometer sensors are available as options . The T6K is also capable of using S.Bus/S.Bus2 servos which can be easily programmed via the transmitter, whilst these and standard servos can all be used with the supplied R3006SB receiver.
|
S-FHSS/T-FHSS selectable
Telemetry system (T-FHSS) with data speech function for monitoring receiver battery voltage, external voltage, temperature, RPM, altitude and variometer
Built-in antenna
S.Bus/S.Bus2 servo setting functions programmable through the transmitter
Preset vibration alarms
30 model memory
8-character model/user naming
Programmable mixes for airplanes, helicopters, gliders and multi-rotors
Digital trims with variable step settings
Adjustable stick length and tension
Changeable switch/VR position and AUX channel function
Throttle position warning
Backlit 128x64 DOT LCD screen with adjustable display contrast
Software updateable through the CIU-2
Screen Lock
Earphone/S.Bus/Trainer jacks
Assignable switches (three 3-position, one 2-position)
Range Check
Program navigation bay with jog dial, +/- pads and end pad
Data reset
Model copy
Selectable model type
Fail Safe
End Points
Trim/Trim Resets/Trim Steps
Sub Trim
Servo Reversing
Parameter functions
Servo monitor/Test
Wireless model data transfer
Timer-System and Model (Up/Down)
Trainer system
Airplane Functions
Wing Type (5-wing, 2-tail)
Throttle Cut
Dual Rate/Expo
Throttle Curve
Idle down
Gyro
Aileron differential
V-Tail
Camber
Air Brake
Elevator-to-Flap mixing
Flap-to-Elevator mixing
Elevon mixing
Glider Functions
Wing Type (5-Wing, 2-Tail)
Condition select
Dual Rate/Expo
Motor switch
Gyro
Aileron Differential
V-tail
Butterfly mixing
Trim mixing
Elevator-to-Camber mixing
Camber mixing
Aileron-to-Camber mixing
Helicopter Functions
Swash type (6)
Condition Select
Throttle Cut
Dual Rate/Expo
Trim Offset
Delay
Gyro mixing
Swash AFR
Swash mixing
Throttle Curve (5-point)
Pitch Curve (5-point)
Pitch-to-Rudder mixing
Throttle Hold
Hovering throttle
Hovering pitch
Multicopter Functions
Flight Mode
Center alarm
Dual Rate/Expo
Throttle Curve
Throttle Delay
Gyro
Required for use: 4x 'AA' batteries for transmitter & suitable Rx battery |
|
|
Specification
Audio Jack: Yes
Dials: 1
Model Memory: 30
Modulation: Futaba 2.4GHz (T-FHSS, S-FHSS)
Navigation Type: Jog Dial
Receiver: Futaba R3006SB 2.4GHz T-FHSS (Inc.)
S.BUS: S.Bus & S.Bus2
SBus Connector: Yes
Switches: 4
Trainer Connector: Yes (Square)
