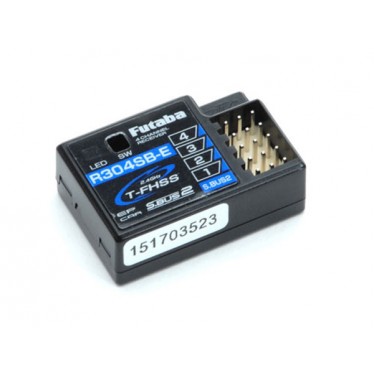

Futaba 4-Channel Rx T-FHSS (Electric) 2.4GHz P-R304SB-E

The R304SB-E is a compact little 4 channel receiver using T-FHSS telemetry designed for use with electric cars. Suitable for HV applications the R304SB-E has an operating voltage range of 3.6 up to 8.4v. The R304SB-E has a compact built-in aerial allowing for easy clean installations.

T-FHSS is a variation of Futaba's FHSS technology with the added bonus of telemetry. As standard the receiver will monitor its own voltage and transmit that back to your T-FHSS transmitter. There is also a S.Bus2 port included allowing you to plug in additional futaba telemetry sensors.

Built-In aerial for clean installations

Compact size

T-FHSS telemetry

Operating voltage of 3.6 - 8.4v

Weighs only 6.7g!

Specification

Mode: Normal/High speed mode (Auto Detection)

 Modulation: Futaba 2.4GHz T-FHSS

 Range: 70m (230') under best conditions

 S-Bus: S.BUS2

 Weight: 6.7g (0.23oz)

 Channels: 4

 Dimensions: 35.1 x 23.2 x 12.5mm (1.38 x 0.91 x 0.33")

 Voltage: 4.8 - 7.4V
